What Are Marine Exhaust Risers and Why Are They Critical?

Marine exhaust risers are vital components of a boat’s exhaust system, playing a critical role in ensuring engine performance, safety, and longevity. Often overlooked during boat maintenance, these components are essential for managing exhaust gases, cooling the system, and preventing catastrophic engine damage.

In this comprehensive guide, we’ll explore the purpose and importance of marine exhaust risers, their design considerations, signs of failure, backflow prevention techniques, the differences between wet and dry exhaust systems, and corrosion resistance strategies. This article is tailored for boat maintenance professionals, marine engineers, and boat owners seeking to understand the critical nature of exhaust risers.

What Are Marine Exhaust Risers?

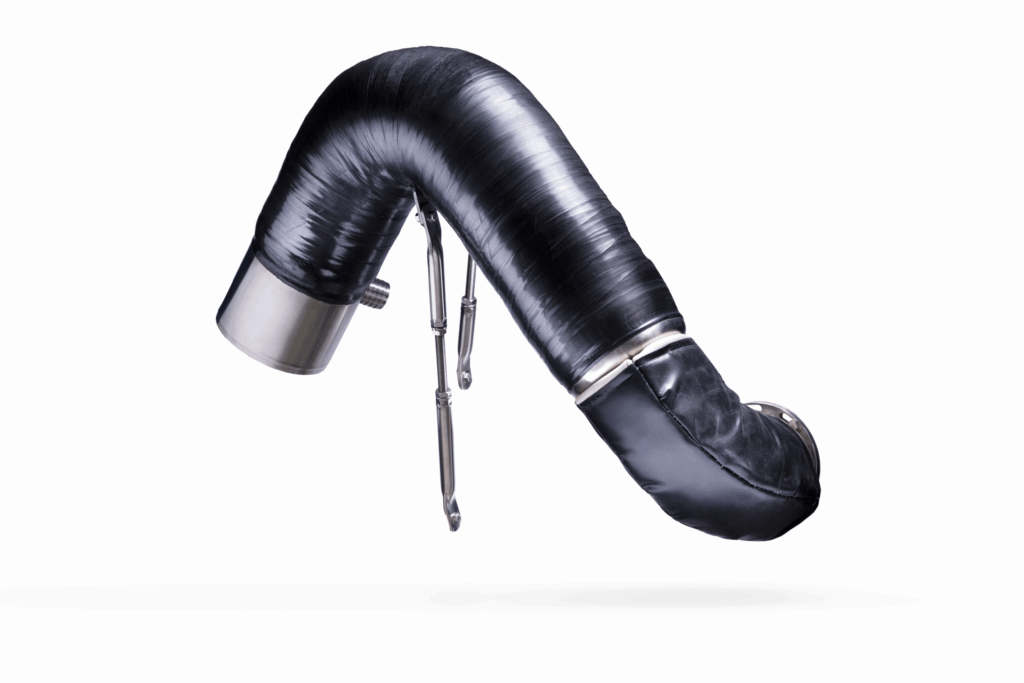

Marine exhaust risers, sometimes called exhaust elbows, are components that connect the engine’s exhaust manifold to the exhaust hose in a marine engine system. Typically made from cast iron, stainless steel, or bronze, risers are designed to handle high temperature exhaust gases while cooling them with water to prevent damage to downstream components. They are usually located near the top or side of the engine and are shaped like a horseshoe or elbow to facilitate the transition from the engine to the exhaust system.

The primary functions of marine exhaust risers include:

• Cooling Exhaust Gases: Risers inject cooling water (either seawater or freshwater from a closed system) into the exhaust stream to lower its temperature, protecting hoses and mufflers from heat damage.
• Preventing Backflow: Properly designed risers prevent cooling water from flowing back into the engine, which could cause severe damage like hydro lock.
• Directing Exhaust Flow: Risers ensure exhaust gases are safely routed out of the boat, reducing noise and environmental impact.

For high quality marine exhaust components, including risers and mufflers, visit Centek Marine for innovative solutions tailored to marine applications.

Why Are Marine Exhaust Risers Critical?

Marine exhaust risers are critical because they directly impact engine performance, safety, and durability. A failure in the riser can lead to costly repairs or even total engine failure. Here’s why they matter:

1. Engine Protection: Risers prevent overheating by cooling exhaust gases, which can reach temperatures of up to 1,000°F. Without proper cooling, exhaust hoses and mufflers could melt or degrade.
2. Preventing Water Ingress: A well designed riser prevents cooling water from entering the engine cylinders, which could cause hydro lock a condition where water in the cylinders prevents the engine from turning over, leading to bent connecting rods or broken pistons.
3. Reducing Corrosion: Risers are exposed to harsh marine environments, including saltwater, which accelerates corrosion. High quality materials and design can extend their lifespan and protect the engine.
4. Compliance with Regulations: Properly functioning risers help meet environmental and noise regulations by ensuring exhaust gases are safely expelled and muffled.

Neglecting riser maintenance can lead to severe consequences, as noted by marine experts: “Exhaust riser failures either in design or corrosion are the single largest cause of engine damage and premature failure”.

Riser Design: Key Considerations

Designing an effective marine exhaust riser requires careful planning to balance performance, safety, and space constraints. Here are the key factors marine engineers consider:

• Material Selection: Cast iron is common due to its affordability, but it corrodes quickly in saltwater environments, lasting only 4 5 years with proper maintenance. Stainless steel or bronze risers offer better corrosion resistance but are more expensive. For advanced corrosion resistant solutions, explore Centek Marine’s Vernatube products, which use fire retardant fiberglass for durability.
• Height and Slope: Risers should be installed with a steep downward slope after the water injection point to use gravity to prevent water backflow. The riser’s height should utilize available engine room space to keep the exhaust outlet above the waterline, reducing the risk of water ingress.
• Wet vs. Dry Sections: Risers typically have a dry section (before water injection) and a wet section (after water injection). The dry section must withstand high temperatures, while the wet section must resist corrosion from water and exhaust gas mixtures.
• Backpressure Management: Excessive backpressure can damage the engine. Risers should minimize bends, especially 90 degree wet bends, to reduce restriction. Custom risers or mufflers from Centek Marine can optimize backpressure for specific engine requirements.

Poorly designed risers, such as “cookie cutter” factory wet elbows, often fail to account for boat specific needs, leading to safety risks and engine damage.

Wet vs. Dry Exhaust Systems

Marine exhaust systems are broadly categorized into wet and dry systems, each with distinct implications for riser design:

• Wet Exhaust Systems: These systems inject cooling water into the exhaust stream to reduce temperature and noise. Wet risers are more common in recreational boats with 150 800 HP diesel engines. They use materials like fiberglass or corrosion resistant metals to handle the water exhaust mixture. Advantages include quieter operation and lower exhaust temperatures, but they are prone to corrosion and require careful backflow prevention.
• Dry Exhaust Systems: Dry systems do not use water injection, relying instead on insulated pipes to manage heat. They are simpler and less prone to corrosion but are noisier and risk overheating nearby components. Dry risers are typically used in larger vessels or where the exhaust exits directly out the stern.

Centek Marine specializes in wet exhaust systems, offering mufflers and risers designed to balance cooling, noise reduction, and back pressure.

Signs of Riser Failure

Recognizing the signs of riser failure is crucial for preventing engine damage. Common symptoms include:

• Engine Starting Issues: Difficulty starting the engine may indicate water ingress, potentially due to a corroded or leaking riser.
• White Smoke: White smoke from the exhaust suggests water in the cylinders, a sign of riser failure allowing backflow.
• Overheating: Reduced cooling water flow due to corrosion or scale buildup can cause the engine to overheat. An infrared pyrometer can measure exhaust temperature to diagnose this issue.
• Visible Corrosion or Leaks: External rust, scale, or leaks at the riser hose connection indicate corrosion, particularly crevice corrosion where water is trapped between the hose and riser.
• Unusual Noises: Increased exhaust noise may signal a clogged or damaged riser affecting muffler performance.

Regular inspections, ideally every two years for wet joint systems, can catch these issues early. Upgrading to dry joint risers, as recommended by Centek Marine, can reduce failure risks.

Backflow Prevention Techniques

Preventing water backflow is a primary function of marine exhaust risers. Effective strategies include:

• Proper Riser Height: Position the riser’s top above the waterline to use gravity to prevent water from flowing back into the engine.
• Steep Downward Slope: Inject water on the downhill side of the riser to ensure it flows out of the boat, not toward the engine.
• Surge Tubes and Mufflers: Custom surge tubes or mufflers, like those from Centek Marine, can manage water flow and reduce back pressure.
• Lifting Bow First: When hauling a boat, lift the bow first to drain water from the exhaust system, preventing it from reaching the engine.
• Anti Siphon Valves: These valves prevent water from siphoning back into the exhaust system when the engine is off.

Poorly designed risers or improper maintenance can lead to hydro lock, where water enters the cylinders, causing catastrophic damage.

Corrosion Resistance Strategies

Corrosion is the primary enemy of marine exhaust risers, especially in saltwater environments. Strategies to enhance corrosion resistance include:

• Material Upgrades: Replace cast iron risers with stainless steel, bronze, or fiberglass reinforced plastics like Centek Marine’s Vernatube, which are non corrosive and fire retardant.
• Regular Maintenance: Inspect and clean risers every 2 3 years to remove scale and check for internal corrosion. Replace gaskets in wet joint systems every two years to prevent leaks.
• Coatings and Wrapping: Apply anti corrosion coatings or wraps, such as PetroWrap® Anti Corrosion Tape, to protect risers from external corrosion.
• Freshwater Flushing: For boats in saltwater, flush the exhaust system with freshwater to reduce corrosion, especially in raw water cooled systems.

Maintenance Tips for Boat Owners and Marine Engineers

To maximize riser lifespan and prevent engine damage, follow these maintenance tips:

1. Routine Inspections: Check risers for corrosion, leaks, or scale buildup every 2 3 years or after 200 300 engine hours.
2. Gasket Replacement: Replace gaskets in wet joint systems biennially to prevent leaks.
3. Temperature Monitoring: Use temperature gauges or an infrared pyrometer to monitor riser temperatures, ensuring they stay within safe limits.
4. Upgrade to Dry Joint Systems: Consider upgrading to dry joint risers for better separation of water and exhaust gases, reducing the risk of backflow.
5. Consult Experts: Work with reputable suppliers like Centek Marine for custom risers and mufflers tailored to your boat’s needs.

Conclusion

Marine exhaust risers are unsung heroes of a boat’s exhaust system, ensuring engine safety, performance, and compliance with environmental standards. Their design, material, and maintenance directly impact the longevity of your engine and the safety of your vessel. By understanding the importance of risers, recognizing failure signs, and implementing backflow prevention and corrosion resistance strategies, boat owners and marine engineers can avoid costly repairs and ensure smooth sailing. For top tier exhaust solutions, explore Centek Marine’s range of risers, mufflers, and fittings designed for durability and performance.

FAQs About Marine Exhaust Risers

What is the difference between a marine exhaust riser and an exhaust manifold?

An exhaust manifold collects exhaust gases from the engine’s cylinders, while a riser connects the manifold to the exhaust hose, cooling the gases with water and directing them out of the boat.

How often should marine exhaust risers be replaced?

In saltwater environments, cast iron risers typically last 4 5 years with proper maintenance. Stainless steel or fiberglass risers may last longer but should be inspected every 2or 3 years.

What are the risks of ignoring riser maintenance?

Neglecting risers can lead to corrosion, water ingress, hydro lock, and engine failure, resulting in costly repairs or engine replacement.

Can I use dry exhaust risers in a wet exhaust system?

No, dry exhaust risers are not designed for water injection and could overheat in a wet system. Always match the riser to the exhaust system type.

How can I tell if my riser is failing?

Look for signs like difficulty starting the engine, white smoke, overheating, visible corrosion, or leaks at the riser hose connection.

Why are dry joint risers better than wet joint risers?

Dry joint risers separate water and exhaust passages more effectively, reducing the risk of water backflow and extending riser lifespan.

How does Centek Marine improve exhaust riser performance?

Centek Marine offers corrosion resistant Vernatube and custom mufflers designed to optimize backpressure, cooling, and noise reduction for marine applications.
